Airflow design for indoor cultivation

Every leaf sits inside a film of still air that slows gas exchange. Airflow strips that film away. By the end you will know how much air to move, which fans deliver it, and how to place them so every leaf gets a gentle breeze.

Beginner8 diagrams · 8 photosEvidence-linked · 18 sources~26 min read
01 · Read this first

Purpose and scope

Airflow is the plumbing that keeps gases moving at the leaf. This paper explains how it works, how much you need, which fans deliver it, and where to place them so every part of the canopy gets a gentle breeze — including the buried inner leaves where bud rot starts.

This guide explains, from zero, what air movement does at the leaf, how much you want, which fans actually make that air, how to rank them, and where to hang them.

02 · The vocabulary

Definitions

Boundary layerThe thin film of still air that clings to every leaf surface. Gases have to diffuse across it slowly, so it is the bottleneck airflow attacks.
Air velocityHow fast air is moving at the canopy, in metres per second (m/s). This is what matters, not how big your fan is.
Laminar vs turbulentLaminar = smooth, layered airflow (like a calm jet). Turbulent = messy, mixing airflow. For leaves, messy is better.
TranspirationThink of a damp towel drying in sunlight: the drier and warmer the air, the faster the water leaves, and moving air speeds it up by carrying humid air away. A plant works the same way. Transpiration is the process of water absorbed at the roots being released as vapour through pores on the leaves. Airflow keeps it moving by clearing the humid film that would otherwise slow it down.
Air exchangeSwapping room air with fresh air (intake/exhaust). Different from recirculation, which only stirs the air already in the room.
HAF / VAFThe two main hanging fan types. HAF = horizontal airflow: hangs above the crop and blows sideways to drive a room-wide loop. VAF = vertical airflow: hangs above the crop and blows straight down through it.
CFM and FPMTwo different things people confuse. CFM (cubic feet per minute) is the volume a fan shifts, which is what it is sold on. FPM (feet per minute) is the speed air arrives at a leaf, which is what the plant feels. ~1 m/s (≈ 200 FPM).
Throw and entrainmentThrow is how far a fan's jet stays useful before it slows to room speed. Entrainment is harder to see: it is the jet dragging still room air along with it, the way a speedboat's wake pulls water into motion well to the sides of the hull. That dragging effect is why a modest hanging fan can stir far more air than it actually pushes through its own blades. It is the whole reason HAF loops work.
Laminar vs turbulent airflowyou want gentle turbulence in the canopyLaminar (smooth)slides over the top, leaves astill pocket belowTurbulent (mixed)stirs air into the canopy, thinsthe boundary layer
Diagram. Smooth (laminar) air slides over the canopy and leaves dead pockets; gentle turbulence mixes air into the plants.
Air exchange: turning the room overfresh in, stale out, mixed throughoutfresh instale outAir changes per hour (ACH) = how many times the whole room volume is replaced each hour.
Diagram. Air exchange replaces the whole room's air; air changes per hour (ACH) is how you size it.
Evidence assessment

Evidence and limitations

How sure is this paper?

We've gone to great lengths to keep these guides honest. One of the main ways we do that is self-review: we actively look for claims that are subjective, only lightly backed by literature, or based on grower practice rather than a controlled study — and we call those out instead of dressing them up as settled science.

Often there simply is no paper for the decision you're making. In those cases we're drawing on what other growers report and what has worked in our own rooms. That can still be useful — but it is not a lab proof. Do what works for your plants, your room, and your meters. If a table disagrees with your crop, believe the crop and log the difference.

Solid
Well supported by plant science, standards, or broad multi-source consensus
  • Boundary-layer thinning improves gas exchange; still air holds humidity at the leaf
  • Mechanical flexure (thigmomorphogenesis) can affect stem strength
Operational
What many growers and rooms actually run — start here, then tune
  • ~0.3–1.0 m/s canopy flutter bands and HAF layout habits
Grain of salt
Subjective, thin literature, single studies, or “this works for us” practice
  • Hard disease/stress velocity cliffs without measurement height defined

See something glaringly wrong? Tell us and we'll fix it. Please open a GitHub issue with the paper name and what looks off (include a source if you have one): Report an accuracy issue. Local law, labels, and licences always override any recipe here. Inline notes labelled grain of salt flag the highest-risk over-trust points in the text.

03 · The core idea

Leaf boundary layers

Air right against a leaf barely moves. Think of the still layer of warmth you feel radiating from your arm in a cool room: the air right against your skin barely stirs, no matter how much the rest of the room is moving. Clear it with a fan and you feel the cold immediately. A leaf works the same way. It sits inside a thin film of still, humid air that barely exchanges with the room around it. That film is called the boundary layer. CO2 going in, and water vapour and heat coming out, all have to crawl across that film by slow diffusion. The thicker it is, the more it slows the leaf[1].

The boundary layer: a film of still, humid air on every leafleaf surfacestill-air film (boundary layer)CO₂thick film =slow breathingmoving air thins it→ CO₂ in, water + heat out, faster
Figure 1. Still air insulates the leaf and slows every exchange. Moving air thins the boundary layer so CO2 gets in faster and water and heat get out faster[2].

Moving air thins that film. Even small breezes make a real difference: gentle wind (under ~0.2 m/s added) has been shown to lift daytime photosynthesis by 10–20%[2]. This is the reason fans belong in a grow room.

The boundary layer: still air on the leafthe film that slows water and CO2 exchangestill boundary-layer airmoving room airleaf surfaceGood airflow thins this film so the leaf can transpire and take up CO2. Dead-still air thickens it and the leaf stalls, the airflow goal is to keep it thin, not to blast the plants.
Diagram. The boundary layer is the still-air film on the leaf; airflow's job is to keep it thin so the leaf can breathe and transpire.
04 · The target

Airflow targets

More airflow helps, but with sharply diminishing returns. Photosynthesis climbs steeply as you go from dead-still up to a gentle breeze, then flattens out. Most of the benefit is won by the time leaves are gently fluttering[3].

Airflow vs leaf gas exchange: steep early, flat laterAir velocity at the leaf (m/s). The big wins come early. Past a gentle breeze you gain little.0255075100still0.20.40.60.81.0+relative gas exchange
Figure 2. Gas exchange rises fast then plateaus[3]. The practical target is a gentle, constant breeze. Leaves should flutter slightly, not thrash.
Air-velocity target at the canopyAim for roughly 0.3–1.0 m/s moving through the canopy. A flutter, not a gale.too still: rot risksweet spottoo windy: wind-burn0 m/s1 m/s2 m/s
Figure 3. Below ~0.2 m/s, humid pockets and disease creep in. Above ~1.2 m/s you risk wind-stress and drying the plants out. Aim for the middle.[4]
05 · The link

Matching airflow to light intensity

The brighter the room, the more the leaf needs air. High light drives high photosynthesis and high transpiration, and both depend on the boundary layer staying thin. Cannabis yield keeps rising with light to very high levels[5], but only if airflow and climate scale with it. A bright room with weak airflow wastes the light.

Airflow moves with the rest of the room

Light, CO2, temperature, humidity and airflow work together (see the systems guide). Turning up the light without turning up the air leaves hot leaves sitting in their own humid film[9].

06 · The trade-off

Airflow, transpiration and nutrient demand

Thinning the boundary layer feeds CO2 in and pulls water out faster. More airflow means more transpiration, which means the plant needs more water and nutrient at the roots. There are two beginner gotchas here:

  • Calcium tip-burn. Calcium rides into the leaf on the transpiration stream, so uptake tracks water flow[7]. Crank the airflow and under-feed, and you get calcium-deficiency tip-burn even with plenty in the tank. Fix: feed to match the airflow, not the other way round.
  • Sturdier plants (a good thing). Air movement is a mechanical signal. Plants that feel a breeze grow shorter, thicker, stronger stems, an effect called thigmomorphogenesis[8]. A well-aired plant holds heavy colas without staking.
The other half of the calcium story

Tip-burn cuts both ways, and the direction depends on where the still air is. Too much airflow with too little feed starves the leaf of calcium. But so does a dead-still pocket buried inside a dense canopy, because the leaves in there cannot transpire at all, so no calcium arrives. In lettuce, this is the classic result: blowing air directly into the inner leaves raises their calcium and largely stops tip-burn[13]. That is the single best argument for the top-down fans in section 10.

The transpiration streamVPD pulls water up from root to leafuptakevapour out (VPD pull)roots draw water + nutrients
Diagram. The transpiration stream: VPD pulls water vapour out of the leaf, which draws water and nutrients up from the roots.
07 · The layout

Airflow system functions and equipment

“Add a fan” hides three separate jobs. Buying the wrong one for the job you actually have is the most common airflow mistake in a first room:

Inside the room
Recirculation (mixing)

Move the air that is already in the room so every leaf gets a gentle breeze and no humid dead-zones form. This is the boundary-layer job[6], and it is what most of this paper is about.

Room ↔ outside
Exchange (in / out)

Swap stale, humid, CO2-depleted room air for fresh air, or push it through a carbon filter. Inline duct fans and wall exhausts. This removes water; it does almost nothing for the leaf.

Changing the air
Conditioning (heat / cool / dry)

An air conditioner, dehumidifier or air-handling unit changes the air's temperature and moisture. It has to deliver that treated air somewhere, which is a distribution problem of its own.

Mind the dead zones

Air takes the easy path and skips corners, the lower canopy, and the inside of dense plants. Those still, humid pockets are where bud rot starts. Place fans to push air through the canopy, not just over the top of it, and defoliate enough to let air in.

08 · A subtlety

Turbulent airflow and canopy mixing

Aiming one big fan straight down a row is tempting. Don't. A smooth, laminar jet builds its own thick boundary layer on whatever it hits, and leaves everything off-axis still. Turbulent, mixing air, from many fans at varied angles with oscillation, constantly disturbs the film on every leaf from every direction, which is exactly what thins it best[1][2].

The flutter test

Walk the room. Every leaf, top to bottom and inside the plants, should be gently moving. Still leaves anywhere = a pocket you need to reach. A leaf that is flapping hard = back that fan off.

09 · Field evidence

Evidence from controlled room trials

Everything above is leaf physiology. Does it actually move yield in a real flower room? A controlled trial by Pipp Horticulture with Dr. Allison Justice and the Cannabis Research Coalition tested exactly that: three identical flower rooms with VPD, temperature and humidity held constant, changing only the airflow[10].

The rooms ran at different delivered air speeds. The trial reports these in feet per minute (FPM), a common unit in commercial horticulture; roughly 0.5, 1.0 and 2.0 m/s (about 100, 200 and 400 FPM) were the levels compared. One clean result fell out:

What the trial found, by delivered airflowBelow ~200 FPM (≈1.0 m/s) airflow barely moved the crop. Above it, differences were clear and repeatable.muted: little measurable changeclear, consistent gains0 FPM210 FPM420 FPM
Figure 4. The response was a threshold, not a gentle slope: below ~1.0 m/s (~200 FPM) little changed; above it, yield, plant shape and uniformity improved together[10].

That looks like it fights the leaf-level plateau in Figure 2, but it does not. Figure 2 is the speed at a single leaf; FPM here is what the whole room delivers. Air slows as it pushes into the canopy, so a room has to move well over 1 m/s at the fans before the buried lower and interior leaves feel the gentle breeze Figure 3 asks for. Roughly 1.0 m/s (~200 FPM) delivered is about what it takes to land every leaf in the sweet spot, not just the ones on the outside.

Above that threshold, the higher-airflow rooms showed three things:

  • More sellable flower. Stems carried less biomass and more of the plant's energy went into bud. Trim ran about 42% in the still-air plants and was significantly lower with good airflow, so less of the harvest ended up as larf[10].
  • Less stress. Still-air plants had redder stems and more anthocyanin, a visible stress marker; the well-aired plants looked more uniform and less stressed.
  • Taller, not weaker. Higher-airflow plants finished roughly 15 cm (6 in) taller than the still-air controls, with most vertical growth done by the end of week three, while still putting less into stem. Here the extra height is relief from still-air stress, not the mechanical dwarfing you would get under a harder, direct wind (see section 06).
Uniformity is the real lesson

Even in a tightly engineered room, the crew saw a positional bias: the first 30–60 cm (1–2 ft) of each row behaved differently from the rest. Their takeaway is the one to keep, “if airflow isn’t uniform, neither is your crop.” That is the dead-zone problem from section 07, now measured. Making sure no leaf is left in still air beats chasing a high average fan speed.

How solid is this?

Treat it as strong early field evidence, not settled science: the results so far are one replicate, with a second run underway to firm up the statistics[10]. The direction lines up cleanly with the leaf physiology in the rest of this paper.

10 · The hardware

Fan types

Fans are not interchangeable. Each type makes a different shape of air, and the shape decides which leaves get served. Pick by the shape you need, not by the price tag or the CFM on the box.

What each one looks likeGrok Imagine

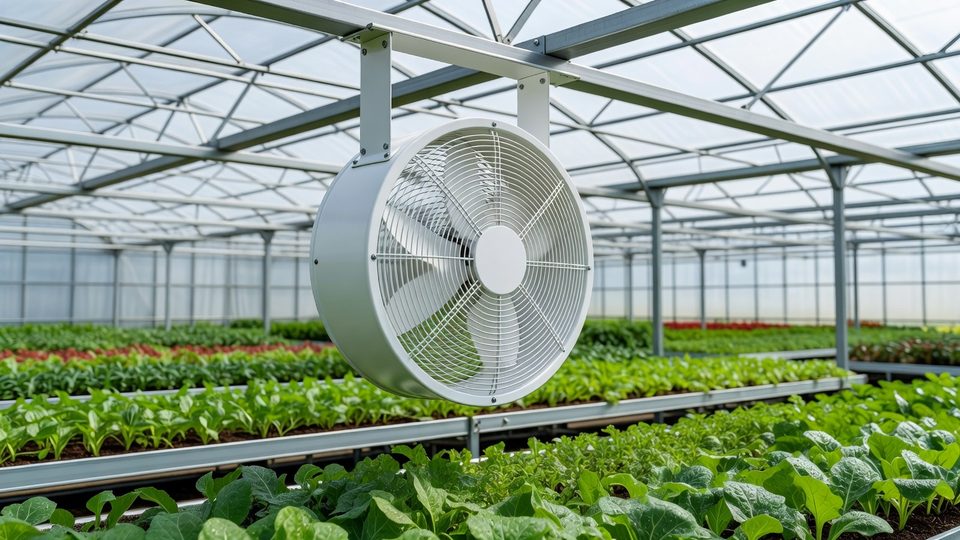

HAF fan in situ
HAF fan

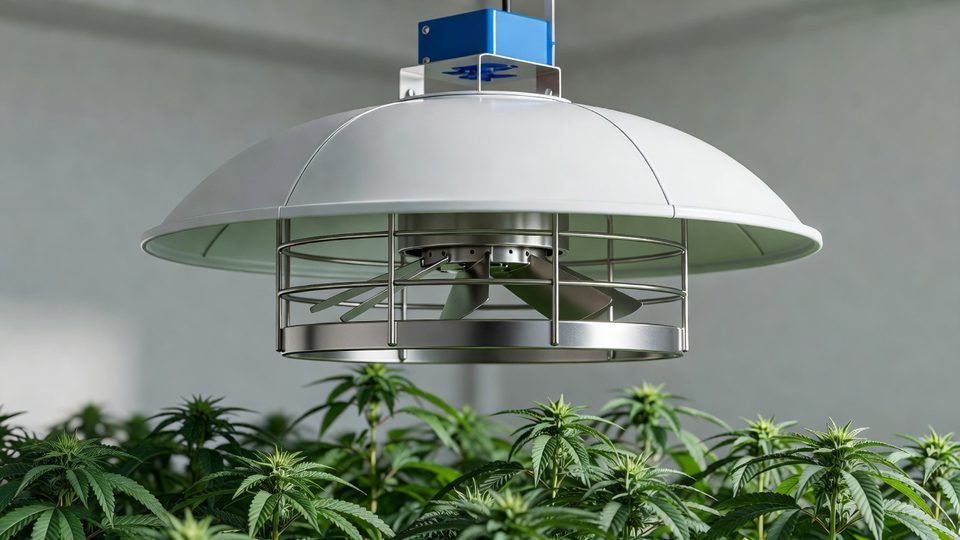

VAF fan in situ
VAF fan

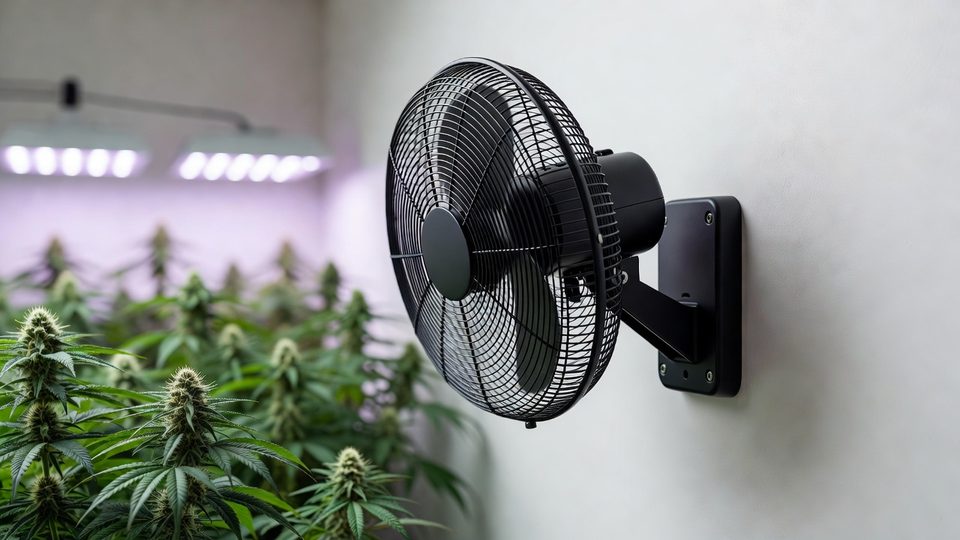

Oscillating fan in situ
Oscillating fan

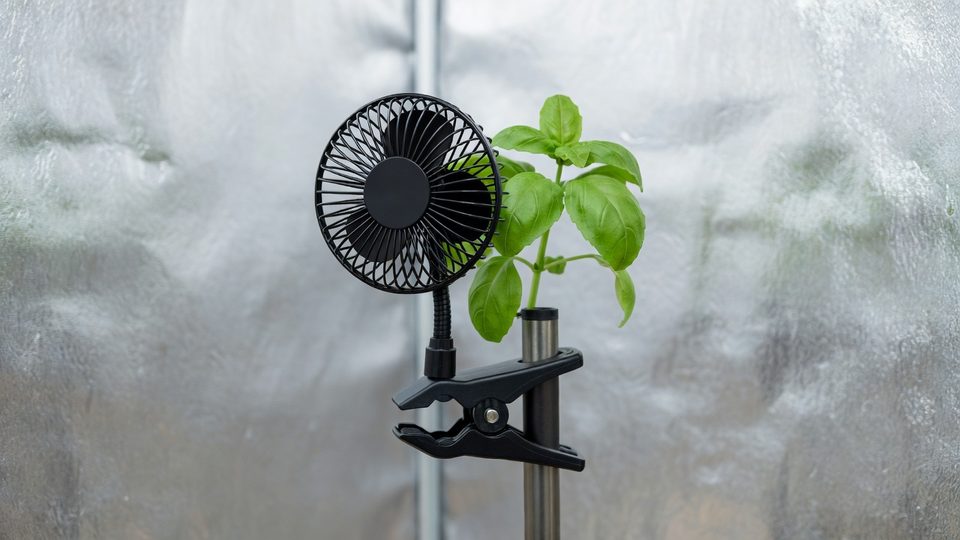

Clip fan in situ
Clip fan

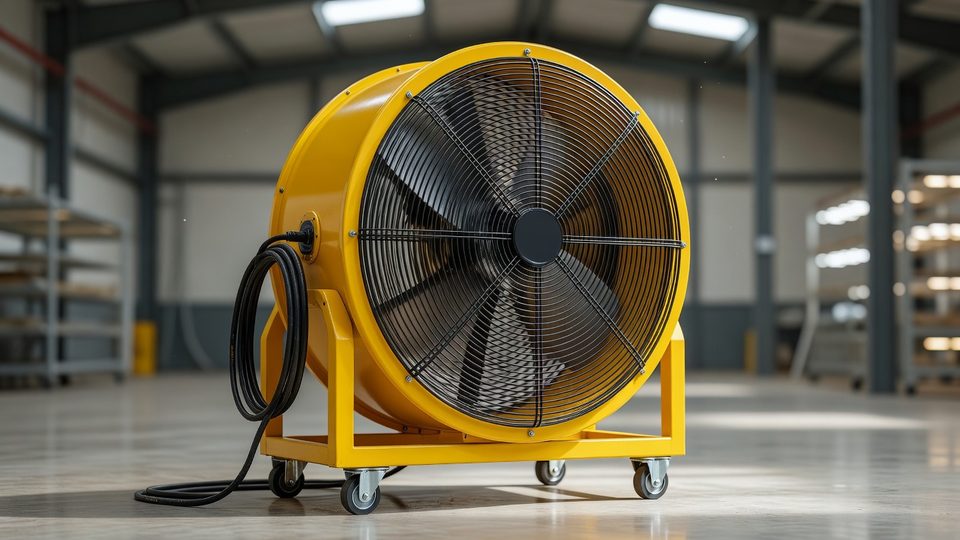

Drum / floor fan in situ
Drum / floor fan

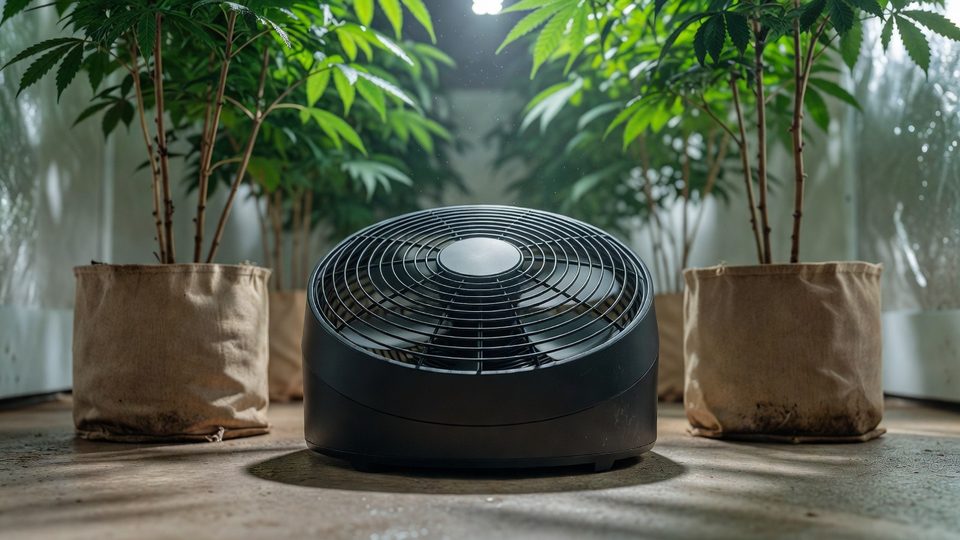

Under-canopy fan in situ
Under-canopy fan

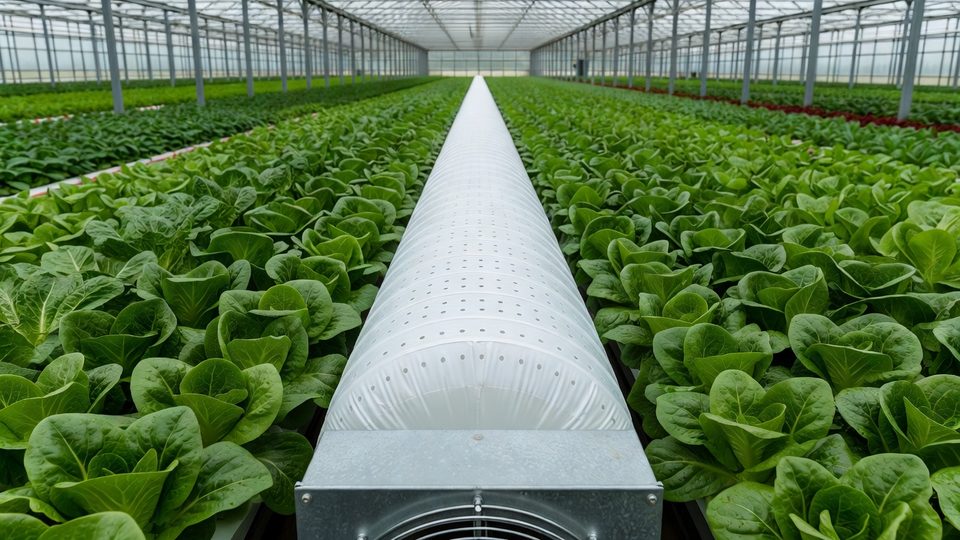

Air sock in situ
Air sock

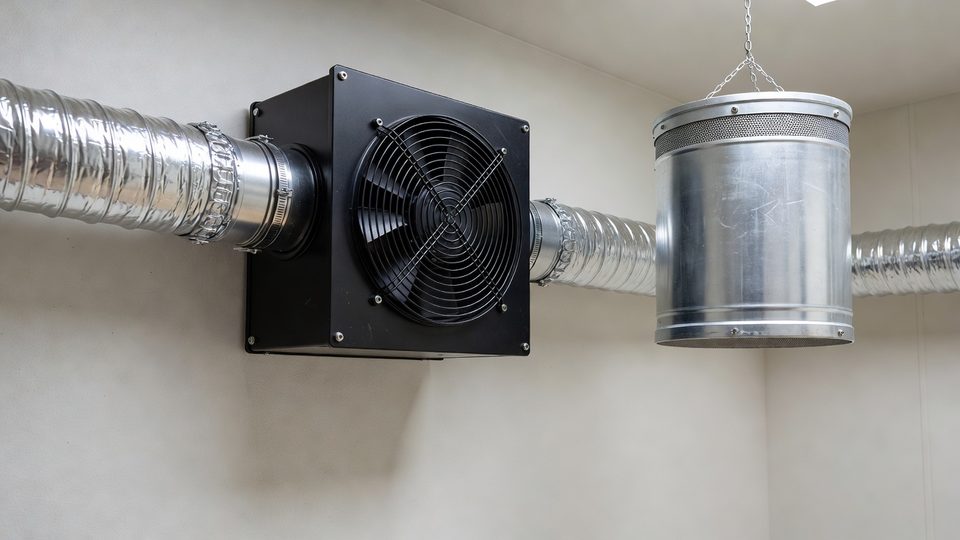

Inline duct fan in situ
Inline duct fan
The eight fans, and the shape of air each one makesGreen = the air it moves. Not interchangeable: the shape decides which leaves get served.HAF fanHangs high, blows sideways.Drives the whole-room loop.VAF fanBlows straight down,through the canopy.Oscillating fanSweeps an arc. Cheap, buteach leaf gets a turn.Clip fanTent scale only. Aboutone plant's worth of air.Drum / floor fanHard narrow jet. A spot-fix,and a wind-burn risk.canopyUnder-canopy fanLow and flat. Clears thewet zone at pot level.even, low-speed deliveryAir sockMany small holes give even,draught-free delivery.room air → outsideInline duct fanExchange, not circulation.Pulls air out of the room.
Figure 5. The eight types you will actually meet, drawn side-on with the air each one makes. The first six are recirculation kit; the air sock is a delivery method; the inline duct fan is exchange, not circulation at all.
Recirculation · the backbone
HAF, horizontal airflow fan

A hanging basket fan, typically a 300–500 mm (12–20 in) blade on a small 1/10–1/15 hp motor, hung above head height and aimed sideways down the room[11]. Several of them together drive one slow racetrack loop: air runs down one side of the room and back the other. Its jet drags surrounding still air along with it (entrainment), so a modest fan stirs a large volume.

Where: above the canopy, a quarter of the room width in from the wall. The catch: its air runs over the top of the crop. In a dense canopy it never reaches the middle.

Recirculation · canopy penetration
VAF, vertical airflow fan

Hangs above the canopy and blows straight down through it, usually with a flared diffuser on top so it draws air from a wide area and delivers a broad column rather than a narrow jet. This is the one type that reliably reaches leaves buried inside a plant.

Where: over the canopy on a grid, spacing set so the down-columns overlap. The catch: more expensive per unit, and it casts shade, so mind where you hang it relative to the lights.

Recirculation · small-room default
Oscillating wall or pole fan

The classic grow-room fan: a head on a bracket that sweeps an arc. Cheap, everywhere, and genuinely good in a small room, because the sweep gives you the varied, turbulent air section 08 asks for.

Where: wall or pole mounted, aimed to mix the room, never pointed straight at plants. The catch: it time-shares. Each leaf only gets air for part of each sweep, so at scale you need a lot of them to hold a constant breeze.

Recirculation · tent scale
Clip fan

A miniature oscillating fan on a clamp, gripping a tent pole or frame. Moves roughly one plant's worth of air.

Where: tents and single-plant setups only. The catch: nothing about it scales. If you are running more than about 2 m² (22 ft²) of canopy, clip fans are a false economy: you end up with six of them doing the job of one proper hanging fan, at higher total wattage and worse uniformity.

Recirculation · spot-fix only
Drum / pedestal floor fan

A large, powerful head on a stand. Very high thrust, a narrow jet, and a lot of noise. This is a blunt instrument.

Where: temporarily, to break a specific dead corner or dry a room down fast after a spill. The catch: it is the single most common cause of wind-burn. Plants directly in front get a gale and everything off-axis gets nothing. Do not build a room's airflow on these.

Recirculation · the wet zone
Under-canopy fan

A low, flat, wide fan that sits at pot level and blows across the floor and up into the bottom of the plants. The zone it serves is the wettest and stillest in the room: cool air sinks, pots and floors evaporate into it, and no overhead fan reaches it.

Where: at floor or bench level, blowing along the rows. The catch: almost none, which is why it is such good value. Just keep it out of the way of irrigation lines and keep the intake clear of leaf litter.

Delivery · conditioned air
Air sock / perforated poly tube

A long fabric or polythene tube, fed by a fan or an air handler, that leaks air through hundreds of small holes along its whole length. Because the holes are small and numerous, delivery is remarkably even and there is no single blast anywhere. Research design targets sit around 6–10 mm holes at 30–70 mm spacing, with the fan holding roughly 30–40 Pa of static pressure so the tube stays inflated and round[16].

Where: running the length of a row, over or under the bench. It is the standard way to deliver conditioned air from an AC or dehumidifier without creating a draught in one corner and a dead zone in the other. The catch: you have to design it (tube diameter, hole size, hole spacing) and it needs a fan that can actually make the pressure.

Exchange · not circulation
Inline duct fan

A fan inside a length of ducting. This is an exchange device, not a circulation device: it pulls air out of the room, usually through a carbon filter, and dumps it outside. It is what controls humidity and refreshes CO2 in a vented room.

Where: ducted to a high point in the room (hot, humid air rises), with a passive or active intake low down. The catch: people count it as their airflow. It is not. A room with a big extractor and no circulation fans still has a still, humid canopy.

Three more you will meet in bigger rooms, listed here so you can place them correctly rather than mistake them for canopy airflow:

Recirculation · tall rooms
HVLS / destratification fan

A large, very slow ceiling fan. Its job is to break the warm layer that collects near the ceiling under lights and push it back down. Useful in tall rooms; pointless under a 2.4 m ceiling.

Exchange · bulk
Wall / shutter exhaust fan

Bulk air exchange for greenhouses and large rooms, with gravity or motorised shutters. Same class as the inline duct fan, just much bigger. Sealed rooms usually do not have one.

Conditioning
AHU / HVAC supply

The air-handling unit that actually heats, cools and dries. It sets your VPD. It still needs a distribution method, typically ducting into socks, to get that treated air evenly across a canopy.

Recirculation · vertical racking
In-rack airflow systems (vertical farms)

If you grow on multi-tier racking, none of the above works on its own: each tier is a low, enclosed slot that overhead fans physically cannot reach. Purpose-built systems mount a ducted fan bar into the racking itself and push air along or down through every tier[18]. On racking it is the only thing that works, and it is the setup the Pipp trial in section 09 was built to test.

11 · The ranking

Selecting fans for canopy airflow

A ranking is only honest if you say what it is ranking for. This one scores crop-relevant airflow bought per dollar installed, in a sealed, single-tier indoor flower room of roughly 20–200 m² (215–2,150 ft²) of canopy. Change the room and the order changes; the callout below says how.

Value per dollar: sealed single-tier indoor flower roomRelative score, not a measurement. Judged on airflow delivered to leaves per dollar and per watt.HAF fan (hanging)95Under-canopy fan84VAF fan (top-down)80Oscillating wall fan68Air sock off the AHU62HVLS / destratification44Drum / pedestal fan30Clip fan22
Figure 6. The backbone is cheap and the glamour is not. The two lowest-ranked fans are the two most first-time growers actually buy.
#Fan typeWhat it buys youReach into the canopyVerdict
1HAF fanA room-wide loop, running 24/7 on very few wattsOver the top onlyBuild the room on these. Cheapest uniformity you can buy[11]
2Under-canopy fanKills the wettest, stillest zone in the roomBottom of the plantBest value add-on. Targets exactly where bud rot starts
3VAF fanAir driven down into the middle of the plantFull depth. The only one that gets thereBuy once density rises. Peer-reviewed for interior-leaf calcium[13][15]
4Oscillating wall fanCheap, varied, turbulent airOver and around, in burstsFine as the backbone below ~20 m² (215 ft²). Falls behind above it
5Air sock off the AHUEven delivery of conditioned air, no draughtsAlong the row, gentleExcellent, but it is capex plus design work[16]
6HVLS / destratificationBreaks the hot layer under the ceilingBulk mixing onlyOnly pays in tall rooms. Wasted under a low ceiling
7Drum / pedestal fanRaw thrust into one spotA gale on-axis, nothing off itSpot-fix only. Leading cause of wind-burn
8Clip fanOne plant's worth of airOne plantTents only. Six of these lose to one hanging fan
Ranked on value per dollar for a sealed, single-tier indoor flower room. Exchange kit (inline duct and wall fans) is deliberately absent: it is mandatory, but it does a different job and cannot be traded against a circulation fan.
When the ranking flips
  • Vertical racking: in-rack systems move to #1 outright and HAF drops off the list. Overhead fans cannot physically reach inside a tier[18].
  • Dense, un-defoliated canopies: VAF overtakes HAF. Top-down airflow is measurably better than horizontal for getting air, and therefore calcium, into inner leaves[13][14]. In greenhouse lettuce, vertical fans cut tip-burn ratings from 5.0 to under 0.1 and burnt leaves from 39% to under 7%[15].
  • Tents and single-plant grows: the whole table collapses to a clip fan or two plus the extractor, and that is genuinely the right answer at that scale.
  • Greenhouses: HAF stays #1 and the air sock rises, because you are also distributing heat[12].
The mistake the ranking is really about

Almost every underperforming room has the same shape of problem: plenty of total CFM, badly distributed. Two drum fans in the corners produce an impressive number on paper and a still, humid middle. Six small hanging fans on a loop produce a smaller number and a room where every leaf moves. Buy the pattern, not the peak.

12 · Placement

Fan placement

Fan placement is a pattern problem, not a coverage problem. You are not trying to hit every plant with a jet; you are trying to set the whole volume of air in the room turning slowly and consistently, then punch that moving air down into the canopy.

HAF layout, seen from above: one loop, not a row of blowersAir runs down one side and back the other. Every fan feeds the fan in front of it.canopycanopy3–4.5 m from the wall12–15 m apartFans sit about a quarter of the room width in from the wall, above head height, and run 24/7.Small rooms use the same shape at metres, not tens of metres: one loop, no fan blowing into another’s face.
Figure 7. The horizontal loop, from above. Fans do not each cover a patch. They hand air to each other around a circuit. First fan roughly 3–4.5 m (10–15 ft) off the end wall, then 12–15 m (40–50 ft) apart, about a quarter of the room width in from the side[11][12].

Then cut the room the other way. Most rooms buy airflow for the top of the canopy only, and that is exactly why rot starts at the bottom and in the middle:

Three heights, three jobs: cut the room sideways and the gaps show upMost rooms buy only the top zone, then wonder why rot starts at the bottom.lightscanopyABOVE THE CANOPYMix, and break heat layersHAF, HVLS, air sockTHROUGH THE CANOPYThe hard part. Rot risk.VAF, in-rack, defoliationBELOW THE CANOPYWettest, stillest airUnder-canopy fansWalk the room at three heights: over the tops, hand pushed into the middle of a plant, and down at pot level.Whichever height fails the flutter test is the fan you are missing.
Figure 8. The same room in section. Three heights, three different jobs, three different fans. If you only own HAF fans you own the top band, and the two bands where disease actually starts are unserved.
  1. 1
    Set the loop first
    Pick a direction and commit. Hang HAF fans so that air runs down one side of the room and back the other, each fan feeding the next. Never point two fans at each other. You will cancel the loop and create a dead spot exactly where they meet[11].
  2. 2
    Get the height right
    Above head height, roughly 2.1–2.4 m (7–8 ft) off the floor for a floor-grown crop, so the jet clears the canopy rather than ploughing into it[12]. Where there are hanging baskets or a light rack in the way, go a clear distance above or below, not level with them.
  3. 3
    Punch down into the canopy
    Add top-down fans over the crop on a grid, spaced so their down-columns overlap. This is the step almost everyone skips, and it is the one that reaches the interior leaves[13].
  4. 4
    Serve the floor
    Put low fans at pot level blowing along the rows. Cold, wet air pools down there and no overhead fan will move it.
  5. 5
    Aim to mix, never to blast
    Angle fans slightly off-parallel and let oscillation vary the direction. You want a room full of slow, turbulent, mixing air, not a set of jets[1].
  6. 6
    Walk it and correct
    Run the flutter test at all three heights: over the tops, hand pushed into the middle of a plant, and down at pot level. Whichever height fails is the fan you are missing. A cheap anemometer, or a length of flagging tape taped to a cane, turns this from a guess into a reading.
Run them all the time

Circulation fans should run 24 hours a day, lights on and lights off. The extension guidance is to run them continuously except when exhaust fans are running or vents are open, because that is when the room is being flushed anyway[11]. Lights-off is when leaf temperature drops toward dew point and condensation forms, precisely when you least want still air[12].

13 · The numbers

Sizing the system

The greenhouse industry has been sizing horizontal airflow for decades and the rules of thumb transfer well to an indoor room. Start here, then measure and adjust:

WhatRule of thumbWhere it comes from
Total circulation capacity~36.6 m³/h per m² of floor (≈ 2 CFM/ft²). A 9 × 30 m (30 × 100 ft) house needs roughly 10,000 m³/h (~6,000 CFM) total.Bartok & Grubinger, UConn/UVM Extension[11]
First fan position3–4.5 m (10–15 ft) in from the end wall, to catch air coming round the corner.UConn IPM[12]
Fan spacing12–15 m (40–50 ft) apart along the loop. Scale down proportionally in a small room.Bartok & Grubinger[11]
Horizontal positionAbout ¼ of the room width in from the side wall (or centre of the bay).UConn IPM[12]
Mounting heightAbove head height; ~2.1–2.4 m (7–8 ft) for floor crops. Clear of baskets and light racks.Bartok & Grubinger[11]
Individual fan size300–500 mm (12–20 in) blade, 1/10–1/15 hp. Many small beats few large.Bartok & Grubinger[11]
Greenhouse velocity target0.25–0.5 m/s (50–100 FPM) of general room movement.UConn IPM[12]
Cannabis flower-room target~1.0 m/s (≈200 FPM) delivered, to land every leaf in the sweet spot.Pipp / Justice trial[10]
Run time24/7, except while exhaust fans run or vents are open.Bartok & Grubinger[11]
Air sock design6–10 mm holes, 30–70 mm spacing, ~30–40 Pa static to hold the tube round.Perforated-duct CFD study[16]
Why the two velocity targets disagree

The greenhouse standard (0.25–0.5 m/s, or 50–100 FPM) and the cannabis figure (~1.0 m/s, or ~200 FPM) are not in conflict; they were set for different goals. The greenhouse number is aimed at temperature uniformity and stopping condensation on leaves overnight in a relatively open, lower-light crop[12]. The cannabis number comes from a dense, high-light flower canopy where the goal is driving air into the plant[10]. Denser canopy and brighter light both push the number up. Use the greenhouse rules for the layout and the cannabis number for the target.

One last number, and it is the one that saves the most money. Fan airflow rises in step with speed, but shaft power rises with the cube of speed[17]. Halving a fan's speed drops it to roughly one-eighth of the power. That has a direct design consequence:

More fans, slower, always wins

Two fans at full speed and eight fans at half speed can move similar air, but the eight fans draw around a quarter of the power and give far better coverage, because the air arrives from more directions with fewer dead spots. This is why speed-controllable EC-motor fans are worth the premium over fixed-speed AC fans: an AC fan is effectively on or off, so to reduce airflow you have to switch fans off, which punches holes in your coverage exactly where the fan you killed used to be.

14 · When it goes wrong

Troubleshooting

SymptomLikely causeWhat to do
Bud rot starting deep in colasDead-zone: air not reaching the canopy interiorAdd top-down (VAF) airflow, defoliate, lower RH
Tops flutter, middle and bottom dead stillAll your airflow is above the canopy (HAF only)Add VAF over the crop and under-canopy fans at pot level
Rot and mildew starting at the bottomThe floor zone is the wettest, stillest air in the roomUnder-canopy fans blowing along the rows
Leaf-tip burn despite full tankAirflow outran nutrient delivery (calcium)Raise feed/EC to match transpiration
Tip-burn only on new inner growthInner leaves too still to transpire, so no calcium arrivesGet air into the canopy interior, not just over it
Leaves clawing / wind-burnt edgesAir velocity too high / fan pointed at plantsReduce speed, aim fans to mix, not blast
One end of a row always behaves differentlyBroken loop: fans spaced too far apart or facing each otherRe-set the racetrack; never point two fans head-on
Big fans, loud room, still stratifiedToo few fans running flat outMore fans at lower speed. Power rises with the cube of speed
Tall, weak, floppy stemsToo little air movement: no mechanical signalAdd gentle constant breeze across the canopy
Room humidity stuck highRecirculation OK but not enough air exchangeIncrease intake/exhaust / dehumidification
Cold or dry patch under the AC outletConditioned air dumped in one spot instead of distributedDuct it into an air sock along the row
15 · Straight talk

Expected results and limitations

What to remember
  1. Airflow's job is to thin the boundary layer on every leaf.
  2. Aim for a gentle, turbulent breeze (~0.3–1.0 m/s) everywhere, including inside the plants.
  3. Buy the pattern, not the peak: many small fans on a loop beat two big ones in the corners.
  4. Serve all three heights, above, through and below the canopy. Only the first is easy.
  5. More air = more thirst: feed and humidity must keep up[7].
  6. Most benefit comes early. You do not need a wind tunnel[3].

Airflow is one subsystem of the room. Read it alongside the systems guide and the mould risk paper.

Related papers

References

  1. Schuepp PH (1993). Tansley Review No. 59: Leaf boundary layers. New Phytologist 125(3):477-507. https://doi.org/10.1111/j.1469-8137.1993.tb03898.x
  2. Dupont K, van den Berg TE, Zhang J, Moene AF, Vialet-Chabrand SRM (2025). Beyond the boundary: a new road to improve photosynthesis via wind. J. Exp. Bot. 76(20):5791-5813. https://doi.org/10.1093/jxb/eraf325
  3. Kitaya Y, Shibuya T, Yoshida M, Kiyota M (2004). Effects of air velocity on photosynthesis of plant canopies under elevated CO2 levels. Adv. Space Res. 34(7):1466-1469. https://doi.org/10.1016/j.asr.2003.08.031
  4. Tjosvold SA (2018). Maximize photosynthesis with moving air. UC ANR Greenhouse & Floriculture (extension article). (industry/manufacturer or non-journal source) https://ucanr.edu/blogs/blogcore/postdetail.cfm?postnum=28455
  5. Rodriguez-Morrison V, Llewellyn D, Zheng Y (2021). Cannabis yield, potency, and leaf photosynthesis respond differently to increasing light levels in an indoor environment. Front. Plant Sci. 12:646020. https://pmc.ncbi.nlm.nih.gov/articles/PMC8144505/
  6. Kitaya Y, Tsuruyama J, Shibuya T, Yoshida M, Kiyota M (2010). CO2 and air circulation effects on photosynthesis and transpiration of tomato seedlings. Scientia Horticulturae 126(2):326-330. https://www.sciencedirect.com/science/article/abs/pii/S0304423810003316
  7. Gilliham M, et al. (2011). Calcium delivery and storage in plant leaves: exploring the link with water flow. J. Exp. Bot. 62(7):2233-2250. https://doi.org/10.1093/jxb/err111
  8. Chehab EW, Eich E, Braam J (2009). Thigmomorphogenesis: a complex plant response to mechano-stimulation. J. Exp. Bot. 60(1):43-56. https://doi.org/10.1093/jxb/ern315
  9. Chandra S, Lata H, Khan IA, ElSohly MA (2008). Photosynthetic response of Cannabis sativa L. to variations in photosynthetic photon flux densities, temperature and CO2 conditions. Physiol. Mol. Biol. Plants 14(4):299-306. https://pmc.ncbi.nlm.nih.gov/articles/PMC3550641/
  10. Anderson K (2026). What cannabis growers can finally learn about airflow. Pipp Horticulture — controlled flower-room trials with Dr. Allison Justice and the Cannabis Research Coalition. (Preliminary: one replicate reported, second underway.) (industry/manufacturer or non-journal source) https://pipphorticulture.com/what-cannabis-growers-can-finally-learn-about-airflow/
  11. Bartok JW, Grubinger V. Horizontal air flow is best for greenhouse air circulation. UMass Extension Greenhouse & Floriculture / eXtension Farm Energy (extension fact sheet). (industry/manufacturer or non-journal source) https://farm-energy.extension.org/horizontal-air-flow-is-best-for-greenhouse-air-circulation/
  12. University of Connecticut Integrated Pest Management. Horizontal air flow systems. UConn CAHNR (extension fact sheet). (industry/manufacturer or non-journal source) https://ipm.cahnr.uconn.edu/horizontal-air-flow-systems/
  13. Goto E, Takakura T (1992). Prevention of lettuce tipburn by supplying air to inner leaves. Transactions of the ASAE 35(2):641-645. https://doi.org/10.13031/2013.28644
  14. Ahmed HA, Tong YX, Yang QC (2020). Lettuce plant growth and tipburn occurrence as affected by airflow using a multi-fan system in a plant factory with artificial light. J. Thermal Biology 88:102496. https://doi.org/10.1016/j.jtherbio.2019.102496
  15. Moosavi-Nezhad M, Meng Q (2025). A calcium-mobilizing biostimulant provides tipburn control comparable to vertical airflow fans in greenhouse hydroponic lettuce 'Rex'. Front. Plant Sci. 16:1701667. https://doi.org/10.3389/fpls.2025.1701667
  16. Wang C, Fu J, Zhang Q, Sheng B, He F, Zhang G, Ding X, Cao N (2025). Optimizing perforated duct systems for energy-efficient ventilation in semi-closed greenhouses through process regulation. Processes (MDPI) 13(7):2253. https://doi.org/10.3390/pr13072253
  17. Air Movement and Control Association International (AMCA). Fan laws (affinity laws): airflow varies with fan speed, pressure with the square of speed, shaft power with the cube of speed. Standard fan-engineering relationship. (industry/manufacturer or non-journal source) https://www.amca.org/
  18. Vertical Air Solutions / Pipp Horticulture. In-rack airflow systems for vertical cannabis racking (manufacturer documentation). (industry/manufacturer or non-journal source) https://pipphorticulture.com/in-rack-airflow-systems/

Citations marked in-text as [n] map to this list. Primary literature and official guidance except where noted. Cannabis tissue culture is strongly genotype-dependent, verify dilutions, hormone doses and local regulations against the primary sources before relying on them.
